Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSL-A410
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: USD 20800~22800
Packaging Details: Plywooden case
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 sets/ month
Camera: |
Color Camera:20μm(15μm For Optical) |
Lamp-house: |
Ring RGB LED Flash Lamp-house |
Anti Static Measures: |
Anti-static Electric Outlet,anti-static Wreath |
PCB Size: |
25×25mm - 480×330mm Can Customized Size |
PCB Warp Tolerance: |
±2mm |
Camera: |
Color Camera:20μm(15μm For Optical) |
Lamp-house: |
Ring RGB LED Flash Lamp-house |
Anti Static Measures: |
Anti-static Electric Outlet,anti-static Wreath |
PCB Size: |
25×25mm - 480×330mm Can Customized Size |
PCB Warp Tolerance: |
±2mm |

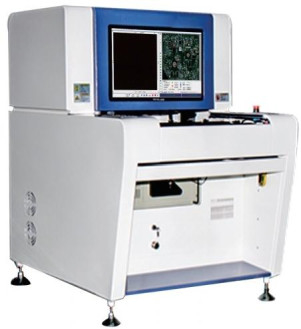

YSL-A410 Automatic Optical Inspection Equipment High Precision Offline AOI
PRODUCT FEATURES
| ● Economical and practical AOI |
| ● High precision detection platform design |
| ● Fast programming debugging integration |
| ● Automatic recognize the Top and Bottom side |
| ● Professional SPC system |
| 技术参数|TECHNICAL PARAMETER | |||
|
类 别 CATEGORY |
项 目 ITEM |
规格参数 SPECIFICATION |
|
|
视 觉 识 别 系 统 Recognition System |
判别方法 Inspection |
结合权值成像数据差异分析技术,彩色图像对比,颜色提取分析技术,相似性,二值化 O C R / O C V 等 多 种 算 法 综 合 应 用 Using mutiple algorithmssynthetically such asWDM,Color Image contrast technoloqy,Color extracting technoloqy similarity two-value handling technology,OCR/OCVand so on |
|
| 相机 Camera | 彩色相机,分辨率:20微米(可选15微米) Color camera:20μm(15μm for Optical) | ||
|
光 源 Lamp-house |
R G B 环 形 L E D 结 构 L E D 频 闪 光 源 Ring RGB LED flash lamp-house | ||
|
图像处理速度 lmage Processing Speed |
0 2 0 1 元 件 0201 Chip |
<10ms | |
| 每画面处理时间 Per-Image Time | <170ms | ||
|
检测内容 Inspection Items |
锡膏印刷 Paste Printig Defects |
有无,偏斜,少锡多锡,断路,污染 Msaligned,overflow,insuffcient,pasting open,stain |
|
|
零件缺陷 Componet Defects |
缺件,偏移,歪斜,立碑,侧立,翻件,极性反,错件,破损 Missing,misaligned,skewed,tombstone,billboard,overturned,reversed polarity wrong,damaged |
||
|
焊点缺陷 SolderDefects |
锡多 , 锡少 , 连锡 Overflow,insufficient,short solder,stain |
||
|
防静电措施 Anti Static Measures |
防静电插座,配防静电环 Anti-static electric outlet,anti-static wreath |
||
|
机械系统 MechanismSystem |
PCB尺寸 PCB Size | 25×25mm - 480×330mm,(可订制非标规格) Can customized size | |
| P C B 厚 度 pCBThicknes | 0.5mm-5.0mm | ||
|
P C B 翘 曲 度 PCB Warp Tolerance |
±2mm | ||
|
零件高度 Component Clearance |
TOP<28mm,BOT<75mm | ||
|
最小零件 Minimum Space Parts |
0201 chip(15μm) | ||
|
X , Y 平 台 X,YPlatform |
驱动设备 Driver | 交流伺服电机系统 AC servosystem | |
| 定位精确 odentation | <10μm | ||
|
移动速度 Moving Speed |
700mm/s | ||
|
软 件 系 统 Soft System |
操作系统 Operation System |
Microsoft Windows 7 | |
|
识别控制系统 Controlling BRecognizing |
特点 Characteristics |
应用权值图像差异建模技术和独特的颜色提取分析技术,学习Ok样品,自动建立标准图像 识别数据及误差阀值 WDM,study OKtemplate,automatically set template imaging,identify data and error numerical value |
|
|
操作 Operation |
图形化编程,自带元件库,根据元件形状选择标准自动生成检测框,精确自动定位,微米位微调, 制程快捷 Graphic programming,take along with chip library and get aninspection fame accordingwithchip shape,aureate postion,micron aajust,and easyprogramming |
||
|
Mark |
点数 MarkNumbers |
可选择0~2个常用的Mark点或多个Mark点使用 0-2marks can be chosen | |
|
识别速度 Recognizing Speed |
0.5s/pCs | ||
|
控 制 系 统 Controller |
电脑主机 Computer | 工业控制计算机,3 CPU,4G DDR内存,1T硬盘 CPU:Intel dual-core,Memory:4G,Hard disk:1T | |
| 显示 Display | 22英寸液晶宽屏显示器 22-inch TFT | ||
|
其它参数 Others |
设备外形尺寸 Machine Dimensions(L×WxH) |
868×1033×1340mm | |
| 重量 Weight | ~310kg | ||
|
电源 PowerSupply |
交流220伏特±10%,频率50/60Hz,额定功率600W AC220V±10%,single phase 50/60HZ,power consumption 600W |
||
|
使用环境 Working Enyironment |
温 度 1 0 - 4 0 ℃ , 湿 度 3 0 - 8 0 % R H Temperature10-40℃,humidity 30-80%RH |
||
