Model Number: YSL-3600
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: USD 50800~62800
Packaging Details: Plywooden case
Delivery Time: 3 days to 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 sets/ month
Outline Dimension: |
580mm × 910mm × 1650mm |
Weight: |
About 600kg |
Maximum Thickness Of Machable Workpiece: |
4mm（Please Communicate With The Equipment Manufacturer In Advance） |
Type Of Processable Products: |
QFN、DFN、BGA、LGA、FC、MEMS，LED Light Bead BT Plate And Other Materials With The Same Physical Characteristics |
Source: |
Single Phase AC220V±10％, Maximum Power 4.5KVA |
Outline Dimension: |
580mm × 910mm × 1650mm |
Weight: |
About 600kg |
Maximum Thickness Of Machable Workpiece: |
4mm（Please Communicate With The Equipment Manufacturer In Advance） |
Type Of Processable Products: |
QFN、DFN、BGA、LGA、FC、MEMS，LED Light Bead BT Plate And Other Materials With The Same Physical Characteristics |
Source: |
Single Phase AC220V±10％, Maximum Power 4.5KVA |

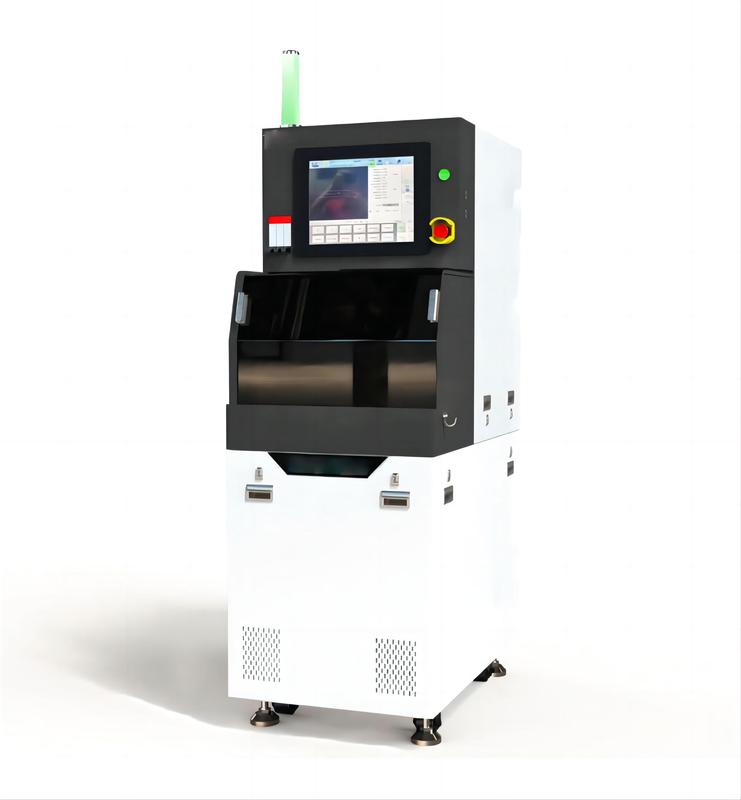

YSL 3600 High Efficiency High Precision Scribing Machine
Equipment use environment requirements and technical parameters
YSL3600Precision scribing machine single axis efficient cutting mode; the maximum processing
workpiece size is 150 * 150mm, suitable for small packaging substrate materials, soft materials
cutting, manual loading and unloading, automatic transmission and positioning, automatic alignment cutting.
1.The scribing machine shall be installed without obvious vibration. Clean the room
without corrosive gas and strong magnetic field. Working temperature is between 20 and 25
℃ and remains constant; relative humidity is <60%, no condensation.
2.The compressed air used by the scribing machine should be clean without oil and water,
and the compressed air must be filtered through the cold dryer.
3.The cutting cooling water quality of the cutting machine shall be clean without impurit
ies, and the water temperature shall be within 16-20℃, and the water temperature fluctua
tion is less than or equal to ± 1℃ ; the excessive water temperature may cause cutting e
dge breaking, membrane wear, blade and cutting ; the water temperature of the cutting mach
ine shall be within 9-16℃, and the water temperature fluctuation is less than or equal t
o ± 2℃ ; the excessive water temperature may cause tin melting, reverse cutting and brok
en cutting. (The difference from room temperature is within ± 3℃ to avoid excessive cond
ensate)
4.The water quality of the spindle cooling water used in the scribing machine should be c
lean and free of impurities, the water temperature should be within 12-20℃, and the wate
r temperature fluctuation is less than or equal to ± 1℃. If the water temperature excee
ds the standard, it may affect the spindle cooling, affect the accuracy and stability of
the spindle, resulting in cutting deviation, poor cutting quality and other conditions. (W
ith room temperature and cutting temperature within ± 3℃)
5.Gas source oil content is less than 0.5mg / m³.
| Basic parameters | |
| Outline Dimension | 580mm × 910mm × 1650mm |
| Weight | About 600kg |
| Maximum thickness of machable workpiece | 4mm(Please communicate with the equipment manufacturer in advance) |
| Type of processable products | QFN,DFN,BGA,LGA,FC,MEMS,LED Light bead BT plate and other materials with the same physical characteristics |
| Source | single phase AC220V±10％, Maximum power 4.5KVA |
|
Compressed air |
Supply compressed air pressure: greater than 0.6MPa, the pressure fluctuation is less than 0.02MPa |
| Equipment working pressure:0.55-0.6MPa | |
| Consumption peak :200 L/min | |
| Filtering accuracy: 0.01μm/99.5% clean oil-free compressed air | |
|
Cooling water |
Pressure:0.2-0.3MPa |
| Consumption peak :2.0 L/min | |
| Temperature :17℃ ±2℃ (According to the required power adjustment of the processing material, the larger the power, the lower the temperature) | |
| Cut water | Pressure:0.2-0.3MPa |
| Consumption peak:6.0 L/min | |
| Temperature:10℃-16℃(When the water temperature has special requirements, please contact the equipment manufacturer in advance) | |
| Air exhaust | Total air discharge of equipment:1.5 m³/min |
| Air speed of equipment air outlet:>17 m/s | |
| Operating temperature of equipment | 23℃±2℃ |
| Relative humidity of environment | 40%-60%,No condensation |
| Equipment placement place | Keep away from the vibration source, keep away from the strong wind, dust, water mist, oil mist device. |
