Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSL-816SII
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: USD 12800~22800
Packaging Details: Plywooden case
Delivery Time: 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 sets/ month
Test Point:: |
Standard:256 Points ;max:4096 Points |
(system):: |
Windows7-10 |
(Power Spec):: |
200-240VAC,Single Phase,50/60Hz3KVA |
Air Requirement:: |
4-8kg/cm2;15liters/cycle |
Environment:: |
Temperature:0C-40C Operating Humidity:20%-80% |
Fixture Type :: |
Manual Type; Press Type:Inline Type |
Test Point:: |
Standard:256 Points ;max:4096 Points |
(system):: |
Windows7-10 |
(Power Spec):: |
200-240VAC,Single Phase,50/60Hz3KVA |
Air Requirement:: |
4-8kg/cm2;15liters/cycle |
Environment:: |
Temperature:0C-40C Operating Humidity:20%-80% |
Fixture Type :: |
Manual Type; Press Type:Inline Type |

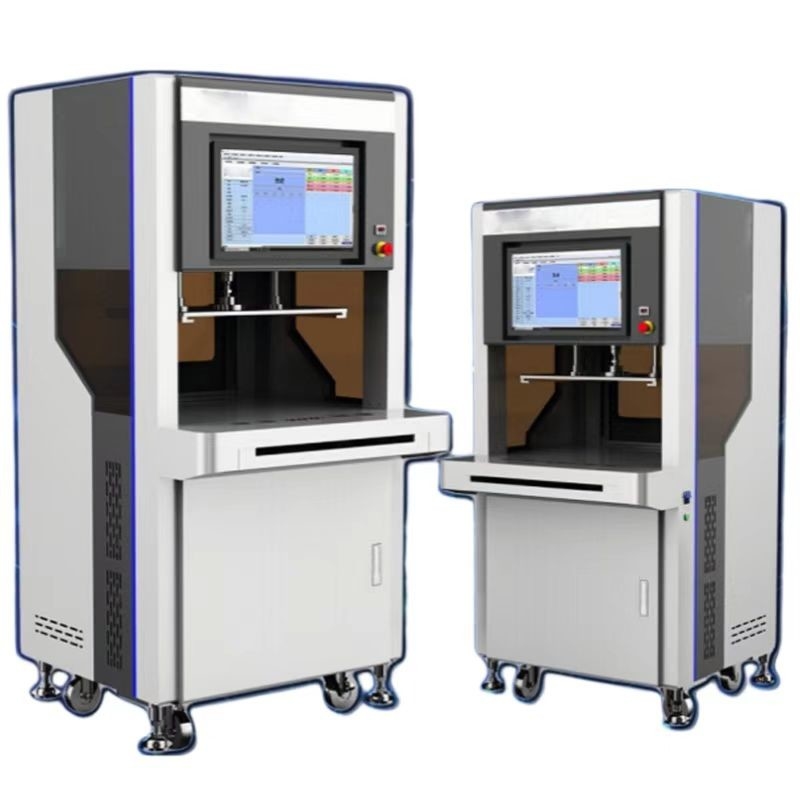

YSL-816SII Inline High Precision Circuit Testing Machine
| System specification | |
| Test point: | Standard:256 points ;max:4096 points |
| (system): | Windows7-10 |
| (Power Spec): | 200-240VAC,Single Phase,50/60Hz3KVA |
| Air Requirement: | 4-8kg/cm2;15liters/cycle |
| Environment: | Temperature:0C-40C Operating Humidity:20%-80% |
| Fixture Type : | Manual type; Press type:Inline type |
| Open/short Test: | 1000point<1S,Innovation algorithm |
| (Component Test) | 0.5ms-30ms |
| (PCBA Size): | 450mm(W)-300mm(L) -100mm(H) |
| (Pneumatic): | 直径φ:100MM,气缸行程:160MM,最大压力:470KG/6Bar |
| (Resistance): | 0.01mΩ-40MΩ |
| (Capacitance) | 10PF-60MF |
| (Inductance) | 10uH-60H |
| Programmable DC Voltage Source:±10VMAX,Resolution:10mV | |
| Programmable DC Current Source:100mA MAX,Resolution:0.2mA | |
| Programmable Frequency:100Hz,1KHz,10KHz,100KHz | |
| DC Voltmeter:0±100V Resolution:3mV-50mV | |
| DCAmmeter:1uA-50mA Resolution:30nA-50uA | |
