Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: Yushunli4
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: USD 2000-4000 piece
Packaging Details: wooden case and vacuum packaging
Delivery Time: 30 work days
Payment Terms: T/T
Supply Ability: 100 piece per mounth
Net Weight: |
60Kg |
Gross Weight: |
80kg |
Nder Factory Test Condition): |
WITH VISION:5000 |
IC Tray Capacity: |
5 |
Power Supply: |
110V/220V |
Dimensions: |
87*68*48CM |
Net Weight: |
60Kg |
Gross Weight: |
80kg |
Nder Factory Test Condition): |
WITH VISION:5000 |
IC Tray Capacity: |
5 |
Power Supply: |
110V/220V |
Dimensions: |
87*68*48CM |
Production Description

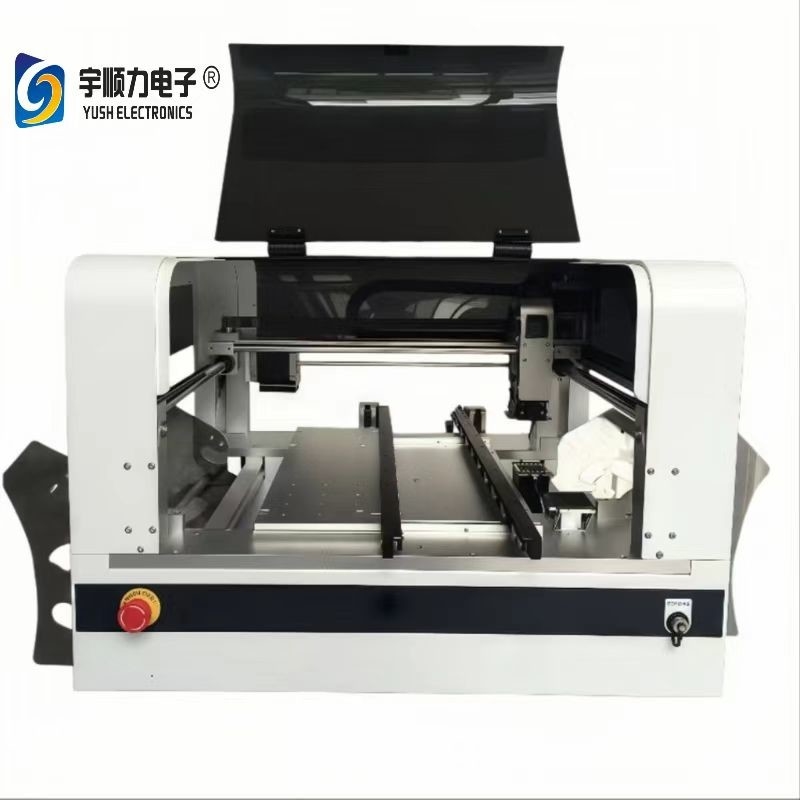

1.Yushunli 4, the brand new and long-awaited model of Yushunli is a desktop Pick and Place machine with vision system. As a professional PnP machine designer and developer, Yushunli has been doing research in SMT industry from 2010.
2.Yushunli 4 is with dual cameras, auto rails,auto electronic feeders and 4 placement heads, which could help to handle 0201,BGA,QFN and 0.8m/1.2m/1.5m LED strip.Yushunli 4 is the best choice to satisfy all demands of high precision, high capacity,stable performance and low cost. This is a huge breakthrough not only for Yushunli,but also for small and medium-sized enterprises, those who want to improve placement accuracy and speed up PCBassembly with a limited budget.
Production Parameter
| Component Max Height | 5MM |
| Rotation | +/-180°(360°) |
| Positioning Accuracy | +/-0.02MM |
| X-Y repeatability | +/-0.02MM |
| Placement Area | Without waffle Tray:290*1500MM |
| With 1 waffle Tray:140*1500MM | |
| Programming | MANUAL MECHANICAL |
| SOFTWARE AUTOMATIC | |
| Main Control | GUI |
| Power | 180W |
Production Feature
1.Dual vision system(up-looking and down-looking cameras), equip with high speed industry CCD cameras can help to identify and calibrate the four
picking components at one time, highly improved accuracy of placement from 0201 to BGA.
2.NEODEN independent research and development on-line dual rails:
A.Support connect to conventional conveyor directly,help reach the goal of continuous automatic feeding the boards.
B.Set the feeding position at anywhere shorten the mounting route.
C.Bases on Yushunli Mark point relocated technology, can mount overlong boards easily.
3.Electronic feeders,adopts feeding error corrections technique to help smooth the pickingand reduce the deviation.
Why Choose
1.Light weight body,occupy small area
2.User friendly interface,no need professional SMT engineer,entry-level device
3.High integrated,no need extra pump or any supporting facility
4.High accuracy and reliability,make up the defection of manual work
5.Low cost,reduce expense to own a professional automaticSMT production line
6.International express with door to door service,3-5 working days delivery
7.Especial for laboratoryresearch and development,samples,to avoid any patents and designs revealment
