Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSL-NG1
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD10000
Packaging Details: wooden case
Delivery Time: 5-7days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100sets
Power: |
Max 300VA |
Power Supply: |
AC1P110V/220V |
Transport Height: |
900±20mm(Or Customized) |
Air Pressure: |
4-6bar,10ltr/min Max |
Power: |
Max 300VA |
Power Supply: |
AC1P110V/220V |
Transport Height: |
900±20mm(Or Customized) |
Air Pressure: |
4-6bar,10ltr/min Max |
Features:
1.Strong,firm and stable design.
2.User friendly 'soft touch' LED membr ance controlpanel or touch screen can be seleced.
3.Top & bottom pneumatic clamps to secure magazine rack.
4.No PCB breakage guaranty because of special gas circuit design.
5.Automatical diagnosing faultcode display function.
6.Wear-resistant cable and have long service life.
7.SMEMA compatible.
| Technical Parameters | |

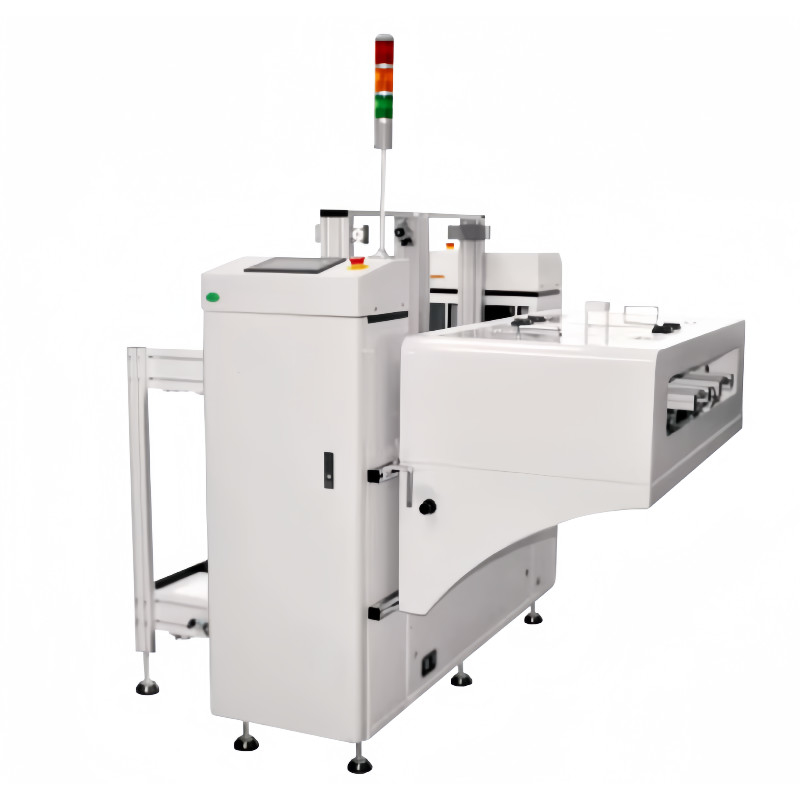

| Description | This equipment is used to unload PCB board(NG/OK) after oven or AOI |
| No. of magazine | Upper Conveyor:1 magazine below conveyor: 1 mazagine |
| Magazine replacement time | Approx.30 seconds or specify |
| Indexing pitch | 10.20.30.40mm or specify |
| Power supply | AC1P110V/220V |
| Power | Max 300VA |
| Air pressure | 4-6bar,10ltr/min max |
| Transport height | 900±20mm(Or customized) |
| Transport direction | From left to right or right to left |
