Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YS-G6565
Payment & Shipping Terms
Minimum Order Quantity: 1 SET
Price: USD 78800~85800
Packaging Details: Plywooden case
Delivery Time: 3 days to 7days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10 sets/ month
Laser Power: |
QCW-150W/1500W |
Laser Wavelength: |
1070nm |
Beam Quality: |
M²<1.1 |
Cutting Speed: |
About 23000 Pad/h |
Working Range: |
650mm*650mm |
Clamping Size: |
680mm*720mm |
Laser Power: |
QCW-150W/1500W |
Laser Wavelength: |
1070nm |
Beam Quality: |
M²<1.1 |
Cutting Speed: |
About 23000 Pad/h |
Working Range: |
650mm*650mm |
Clamping Size: |
680mm*720mm |

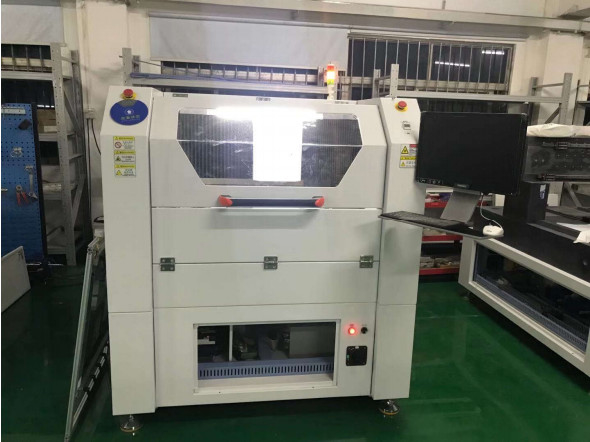

YS-G6565 High Precision PCB Depaneling Cutting Machine Fully Automatic Laser Depaneling Machine
| Parameter : | |
| Machine Model | YS-G6565 |
| Laser Power | QCW-150W/1500W |
| Laser Wavelength | 1070nm |
| Beam Quality | M²<1.1 |
| Cutting Speed | About 23000 pad/h |
| Working Range | 650mm*650mm |
| Clamping Size | 680mm*720mm |
| Overal Dimension | 1640mm*1380mm*1500mm |
| Cutting Accuracy | ±0.01mm ( Specified material |
| Positioning Accuracy | ±2μm |
| (Repeated positioning accuracy) | ±2μm |
| Cooling Way | Air cooling/water cooling |
| (Auxiliary cutting gas) | Oxygen 8-10Kg Compressed air16Kg |
Product features:
Adopting double drive structure of linear motor with iron core, high
inertia and large thrust the maximum acceleration can reach 2.0G,
ensuring high-speed and accurate action of the equipment;
Imported IPG fiber laser, stable output power, long life, maintenance
-free,vertical smooth processing hole wall, but also to ensure the
stability of the processing process;
The use of American imported drivers,advanced adjustment and
setting algorithms greatly improve cutting performance and ensure
processing accuracy;
The whole machine adopts natural marble as the matrix structure,
which is safe and stable;
Equipped with high-precision grating ruler full closed-loop system,
real-time feedback,reduce repeated positioning error;
Convenient operation: the man-machine interface is simple and easy
to understand, can process any plane graphics, the equipment is small
in size;
The equipment has high reliability and can be continuously and stably
produced for 24 hours to meet the needs of industrial mass production
and processing;
Customized customization ability, can be tailored to customer needs to
create exclusive models;
