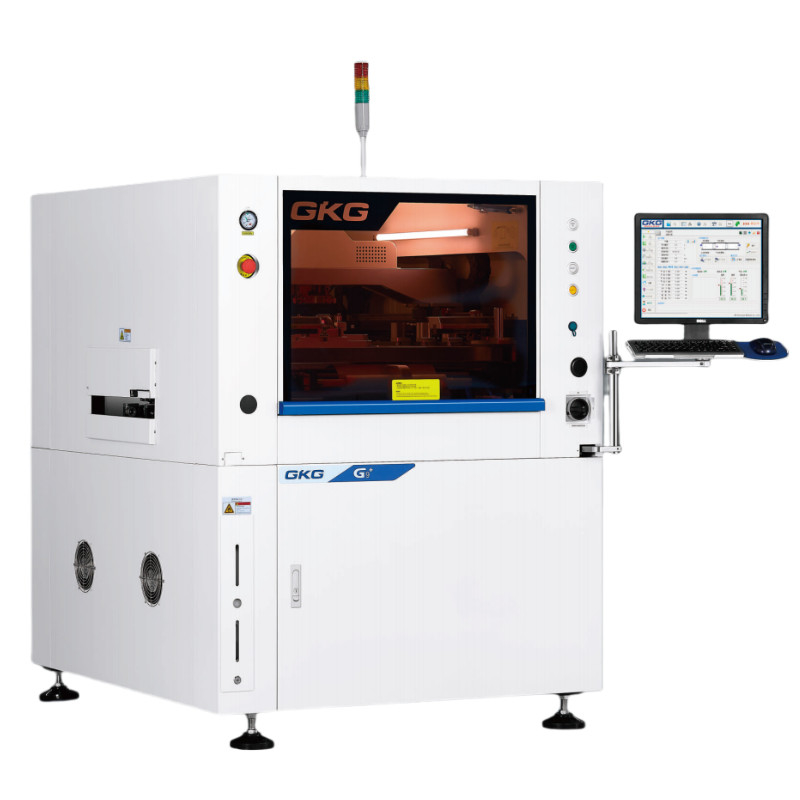

Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSK
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD12000
Packaging Details: wooden case
Delivery Time: 5-7days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 sets
Power Source: |
AC:220 ±10%,50/60Hz 2.2KW |
Air Pressure: |
4~6Kgf/cm² |
Air Consumption: |
5L/min |
Operating Temperature: |
-20℃~+45℃ |
Working Environment Humidity: |
30%~60% |
Machine Dimension(without Tower Light): |
1460 Mm |
MachineLength: |
1150 Mm |
Machine Width: |
1380 Mm |
Machine Weight: |
Approx:900Kg |
Equipment Load Bearing Requirements: |
650Kg/m |
Power Source: |
AC:220 ±10%,50/60Hz 2.2KW |
Air Pressure: |
4~6Kgf/cm² |
Air Consumption: |
5L/min |
Operating Temperature: |
-20℃~+45℃ |
Working Environment Humidity: |
30%~60% |
Machine Dimension(without Tower Light): |
1460 Mm |
MachineLength: |
1150 Mm |
Machine Width: |
1380 Mm |
Machine Weight: |
Approx:900Kg |
Equipment Load Bearing Requirements: |
650Kg/m |
| MachinePerformance | |
| Repeat Position Accuracy | ±12.5um@6o CPK≥2.0 |
| Print Accuracy | ±22um@6o CPK≥2.0 |
| NCP-CT(Excluding cleaning and printing) | 7s |
| HCP-CT(Excluding cleaning and printing) | 18s/pcs |
| Process CT | 4min |
| Transfer CT | 2min |
| Substrate processing parameter | |
| Maximum board size |
400*340mm Scalable:530*340mm(option) |
| Minimum board size | 50*50mm |
| Board thickness | 0.4~6mm |
| Camera Mechanical range | 528*340mm |
| Maximum board weight | 4kg |
| Board edge clearance | 2.5mm |
| Board height | 15mm |
| Transport speed | 900±40mm |
| (Max)Transport speed | Segmented control,1500mm/s(Max) |
| Transport direction | One stage |
|
Transmission direction |
Left to right |
| Right to Left | |
| In and out the same | |
|
Support System |
Magnetic Pin |
| Support Block | |
| Manual Up-down table | |
|
Board camp |
Manual the top clamping |
| Side clamping | |
| Printing Parameters | |
| Print Speed | 10~200mm/sec |
| Print Pressure | 0.5~10Kg |
| Print Mode | One/Twice |
| Queegee Type | Rubber/Squeegee Blade (angle 45/55/60) |
| Snap-off | 0~20mm |
| Snap-Speed | 0~20mm/sec |
| Thetemplate frame size | 470*370mm~737*737mm(thickness:20-40mm) |
| Positioning mode of steelmesh | Automatic Y-direction positioning |
| Cleaning Parameters | |
| Cleaning System | Dry,Wet Vacuum three modes |
| High speed cleaning | Integrated &weave cleaning |
| Cleaning system | Side spray type |
| Cleaning stroke | Automatic generation |
| Cleaning position | Post cleaning |
| Cleaning Speed | 10-200mm/sec |
| Cleaning fluid consumption | Auto &Manually adjustable |
| Cleaning consumption | Auto &Manually adjustable |
| Vision Parameters | |
| CCD FOV | 10*8mm |
| Camera type | 130 Thousand CCD Digital camera |
| Camera System | Lock up/down optics structure |
| Camera Cyde time | 150ms |
|
Fiducial mark types |
Standard Fiducial Mark Shape |
| round,square,diamond,cross | |
| Pad and profile | |
| Mark size | 0.3-6mm |
| Mark number | Max:4pcs |
| Stay away number | Max:1pcs |
