Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSL-330
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD10000
Packaging Details: wooden case
Delivery Time: 3-7days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100sets
External Dimension: |
L1800*W1430*H1660mm |
Direction: |
From Left To Right |
Power Supply: |
Single-phase220V 50HZ |
Air Source: |
0.4-0.6MPa |
External Dimension: |
L1800*W1430*H1660mm |
Direction: |
From Left To Right |
Power Supply: |
Single-phase220V 50HZ |
Air Source: |
0.4-0.6MPa |
Equipment Parameter :

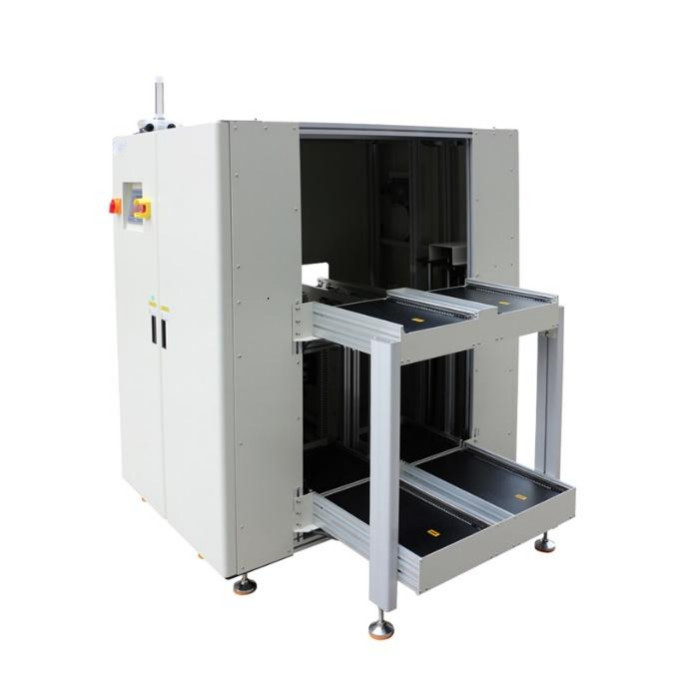

| YSL-330 OK/NG Unloader |
|
Use: For AOI behind, the machine automatically stores NG and OK board separately by receiving AOI signal |
|
1) External dimension:L1800*W1430*H1660mm |
|
2) Special national standard aluminum profile guide rail and special thousand-bird plastic chain |
|
3)90W Taiwan motor drives ball screw to make Magazine step up and down |
| 4)Pneumatic clamp structure. |
|
5) Comes with a set of 0.8M long transplantable push plate Conveyor |
|
6) The specification of Magazine is(L)460*(W)400*(H)565mm |
| 7)PCB specification is(L) 450mm * (W) 330mm |
| 8)Direction: from left to right |
|
9)Lift platform pitch selection is 10,20,30,40,50 |
| 10).Huichuan PLC programmable controller control |
| 11) has the function of separating good and bad boards |
| 12)The operation control panel is a display control touch screen |
| 13) single-phase220V 50HZ |
| 14) Air source:0.4-0.6MPa |
| 15)One set of electric cabinet |
|
16) Panasonic, Omron Optoelectronics, Mingwei Power Supply, Schneider Relay |
