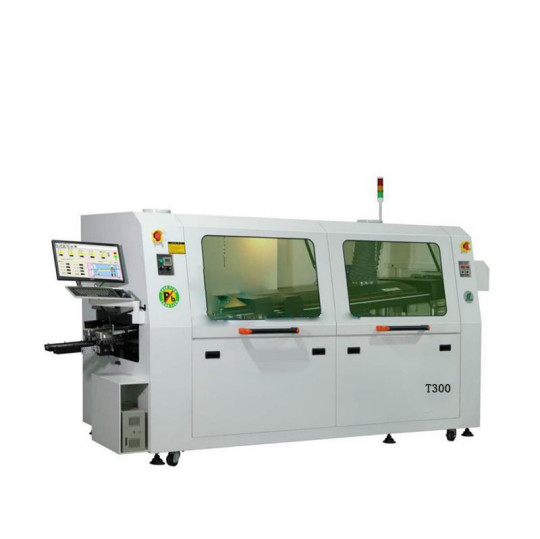

Name: High Quality High Precision Wave Soldering Machine Energy Saving
Brand: YUSH Electronic Technology Co.,Ltd
SKU: T300
Price: 18000 USD
Availability: InStock

Product Details

Place of Origin: Jiangsu

Brand Name: YUSH

Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

Model Number: T300

Payment & Shipping Terms

Minimum Order Quantity: 1set

Price: USD18000

Packaging Details: wooden case

Delivery Time: 3-5dyas

Payment Terms: L/C, D/P, T/T, Western Union,Paypal

Supply Ability: 100set

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                Energy Saving Wave Soldering Machine, High Precision Wave Soldering Machine, High Quality Wave Soldering Machine


Dimension:	360014001750mm	Weight:	Approximately:1100kg
Control Systems:	PC With Window 7+PLC	Start Up Power:	6-8 KW
Direction:	Left To Right ,Front Fix(R To L)	Conveyor Speed:	300-2000mm
Conveyor Speed Control Method:	Motor(Panasonic)	Conveyor Angle:	4-7°
PCB Component Height%22Top 120mm Bottom:	15mm	Power Supply:	3ph,AC380V/220V 50HZ
The Capacity Of Solder Pot:	280KG

Dimension:	360014001750mm
Weight:	Approximately:1100kg
Control Systems:	PC With Window 7+PLC
Start Up Power:	6-8 KW
Direction:	Left To Right ,Front Fix(R To L)
Conveyor Speed:	300-2000mm
Conveyor Speed Control Method:	Motor(Panasonic)
Conveyor Angle:	4-7°
PCB Component Height%22Top 120mm Bottom:	15mm
Power Supply:	3ph,AC380V/220V 50HZ
The Capacity Of Solder Pot:	280KG

High Quality High Precision Wave Soldering Machine Energy Saving

INTRODUCTION:

1. Energy-saving, lead-free application, meet with environmental protection requirement and user friendly designed

2. Automatic power system, inverter control, automatic board in-load feature.

3. Flux sprayer using transverse Japanese spray nozzle and driving by stepper motor, spray range is selective, PLC controlled,

accurate and reliable.

4. Flux recovery container drawer design, easy to clean.

5. Conveyor equiped 3 width adjustable screws, the conveyor transmission is more stable, no PCB falling risk.

6. Titanium solder fingers, high strengthened double v-groove with tin resistant

7. PID close loop controlled hot air pre-heaters, preheating system uses three independent temperature control so as to ensure

the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

8. Pre-heat passage modular design, environmental protection and safety, convenient for cleanup.

9. Solder motor adopts imported high frequency conversion motor with independent control, stable performance.

8. Solder pot's inpeller material is cast iron, never corrode, solder pot with oxidation jacket, low solder dross

11. Timer startup feature for solder pot, solder melted in within 90 minutes.

12. Automatic finger cleaner equipped.

13. With black box memory function, the machine can always store the SPC data, improve work efficiency.

14. Intelligent monitoring and alarm system ensure the stable performance and operators’safety.

High Quality High Precision Wave Soldering Machine Energy Saving 0

General specification	*Dimension;360014001750mm*
	Weight:Approximately:1100kg
	Start Up Power:Approx 19KW
	Normal running power :6-8 KW
	Power supply :3ph,AC380V/220V 50HZ
	Control systems:PC With Window 7+PLC
	PCB counter
Conveyor systems	Direction: Left to Right ,Front Fix(R to L)
	Titanium Alloy V shape Finger
	300mm PCB loading buffer at entrance
	Conveyor speed control method: Motor(Panasonic)
	Conveyor speed:300-2000mm
	Conveyor angle:4-7°
	PCB Component Height”Top 120mm bottom:15mm
	Stepper motor drive reciprocating Spray
	7-UP ST-8 Nozzles
	The capacity of Flux is 6.5/liter
	Flux auto Feeding (Option)

Spay Flux Systems	Spary air pressure:3-5bar
Spay Flux Systems	Modular structure for easy maintenance
Heating system	Heating zones :Bottom 3 zones,
	The Length of heating zones:1450mm
	Heating method:Forces hot air
	Heating zones modularization easy to maintenance
Solder pot	The capacity of solder pot :280KG
	Two wave :Turbulence Wave and Lambda 2nd Wave
	Materials :Titanium alloy (Op:Cast iron enamel)
	Cleaning Finger systems.

Spare Parts :

NO.	Spares Name	Brand	Origin
1	Display	Acer	China
2	Computer	Industrial computer	China
3	PLC	Siemens	Germany
4	Temperature control module	Siemens	Germany
5	90W conveying Motor	Panasonic	Japan
6	Solder pot wave motor	ZIK	China
7	Preheating Coils	Taizhan	China
8	Solder pot heating tube	Taizhan	China
9	Main Switch	Mitsubishi	Japan
10	Contactor and currency limiter	OMRON	Japan
11	Intermediate relay	OMRON	Japan
12	Fuse holder and fuse tube	OMRON	Japan
13	Programming controller	CARLO GAVAZZI	Switzerland
14	Frequency Converter	Delta	Taiwan
15	Power button and indicator light	Izumi	Japan
16	Temperature detector	Nihon Dennetu	Japan
17	SSR	CARLO GAVAZZI	Switzerland
18	Photoelectric sensor	SICK	Japan
19	Cylinder	SMC	Japan
20	Flux sprayer	7-UP	Taiwan
21	Patented titanium alloy claws	JAGUAR	China
22	Air/Main Switch	CHNT	China
23	AC Contactor	CHNT	China
24	Button Switch	Schneider	France
