Product Details
Place of Origin: Jiangsu
Brand Name: KGK
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: G5
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD18000
Packaging Details: wooden case
Delivery Time: 5-7days
Payment Terms: L/C, , D/P, T/T, Western Union,Paypal
Supply Ability: 100set
Maximum Board Size: |
400*340mm |
Minimum Board Size: |
50*50mm |
Board Thickness: |
0.4-6mm |
Camera Mechanical Range: |
528*340mm |
Maximum Board Weight: |
3kg |
Transport Speed: |
900±40mm |
Transport Direction: |
One Stage |
Print Speed: |
10~200mm/sec |
Print Pressure: |
0.5~10Kg |
Print Mode: |
One/Twice |
Queegee Type: |
Rubber/Squeegee Blade (angle 45/55/60) |
Snap-off: |
0~20mm |
Snap-Speed: |
0~20mm/sec |
The Template Frame Size: |
470*370mm~737*737mm |
Power Source: |
AC:220±10%,50/60Hz2.2KW |
Operating Temperature: |
-20C~+45℃ |
Working Environment Humidity: |
30%~60% |
Machine Dimension (without Tower Light): |
1404(H) Mm |
Equipment Load Bearing Requirements: |
650Kg/㎡ |
Maximum Board Size: |
400*340mm |
Minimum Board Size: |
50*50mm |
Board Thickness: |
0.4-6mm |
Camera Mechanical Range: |
528*340mm |
Maximum Board Weight: |
3kg |
Transport Speed: |
900±40mm |
Transport Direction: |
One Stage |
Print Speed: |
10~200mm/sec |
Print Pressure: |
0.5~10Kg |
Print Mode: |
One/Twice |
Queegee Type: |
Rubber/Squeegee Blade (angle 45/55/60) |
Snap-off: |
0~20mm |
Snap-Speed: |
0~20mm/sec |
The Template Frame Size: |
470*370mm~737*737mm |
Power Source: |
AC:220±10%,50/60Hz2.2KW |
Operating Temperature: |
-20C~+45℃ |
Working Environment Humidity: |
30%~60% |
Machine Dimension (without Tower Light): |
1404(H) Mm |
Equipment Load Bearing Requirements: |
650Kg/㎡ |

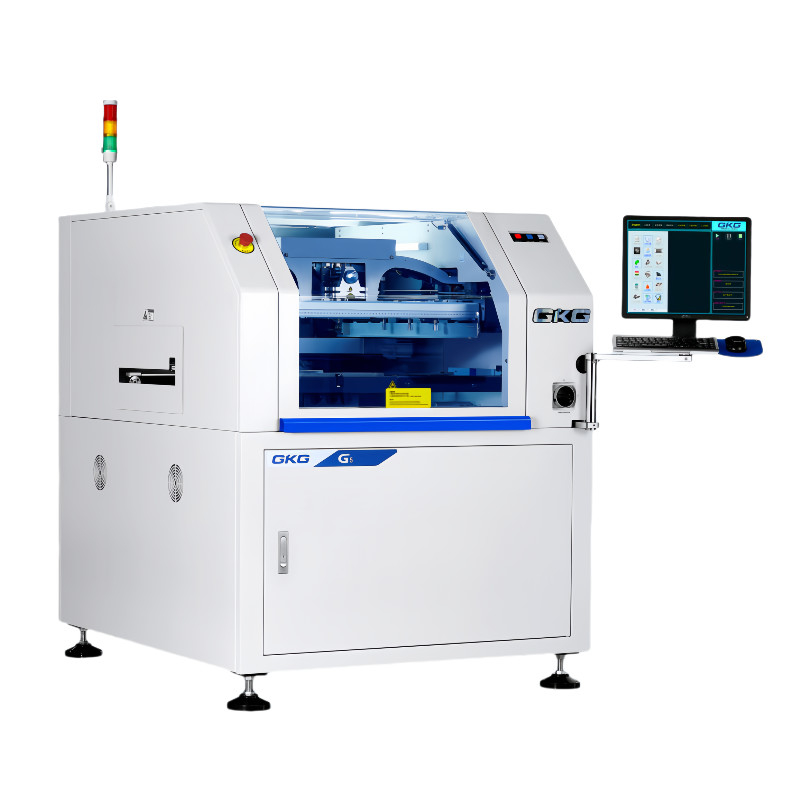

The GSE fully automatic high precision solder paste printer is a high-end model forSMT high-end application,which can satisfy the printing process requirements of high precision and high speed
| Substrate processing | G5 |
| Maximum board size | 400*340mm |
| Minimum board size | 50*50mm |
| Board thickness | 0.4~6mm |
| Maximum board weight | 3Kg |
| Board edge clearance | 2.5mm |
| Board height | 15mm |
| Transport height | 900±40mm |
| Transport speed | 1500mm/s(Max) Program Control |
| Transport direction | One stage |
| Board clamp | Manual the top clamp |
| Side clamping | |
| Spport System | Magnetic Pin |
| Support Block | |
| Manual up-down table |
| Printing Parameters | G5 |
| Snap-off | 0-20mm |
| Print Mode | One/Twice |
| queegee Type | Rubber/Steel Squeegee Blade(angle 45/55/60) |
| Print Speed | 10~200mm/sec |
| Print Pressure | 0.5~10Kg |
| The template frame size | 470*370mm~737*737mm |
| Cleaning Parameters | |
| Cleaning Methods | Dry,Wet Vacuum three modes |
| Cleaning system | Up Drip type |
| Cleaning stroke | Automatic generation |
| Cleaning position | Post cleaning |
| Cleaning Speed | 10-200mm/sec |
| Cleaning fluid consumption | Auto & Manually adjustable |
| Cleaning paper consumption | Auto & Manually adjustable |
| Machine parameter | |
| Power Source | AC220±10%,50/60Hz2.2KW |
| Air Pressure | 4~6Kgf/cm² |
| AirConsumption | Approx:5L/min |
| Operating Temperature | -20℃~+45℃ |
| Working environment humidity | 30%~60% |
| Machine dimension (without Tower light) | 1404(H) mm |
| Machine Length | 1140(L) mm |
| Machine Width | 1362(W) mm |
| Machine Weight Approx | Approx: 900Kg |
| Equipment load bearing requirements | 650Kg/㎡ |
