Product Details
Place of Origin: Jiangsu
Brand Name: Yushunli
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000
Model Number: YSL-4034
Payment & Shipping Terms
Minimum Order Quantity: 1 set
Price: USD 6800~23000
Packaging Details: Plywooden case
Delivery Time: 3 days to 7days
Payment Terms: T/T ,Paypal ,West Union ,L/C ,D/P .
Supply Ability: 300 sets/ month
Cleaning System: |
Dry, Wet, Vacuum |
Dry, Wet, Vacuum: |
2D Inspection(Standard) |
Power Supply: |
AC:220±10%,50/60HZ,3Kw |
Control Method: |
PC Control |
TransportDirection: |
Left-Right; Right-Left; Left-Left; Right-Right |
Support System: |
Magnetic Pin/Up-down Table Adjusted/support Block |
Cleaning System: |
Dry, Wet, Vacuum |
Dry, Wet, Vacuum: |
2D Inspection(Standard) |
Power Supply: |
AC:220±10%,50/60HZ,3Kw |
Control Method: |
PC Control |
TransportDirection: |
Left-Right; Right-Left; Left-Left; Right-Right |
Support System: |
Magnetic Pin/Up-down Table Adjusted/support Block |

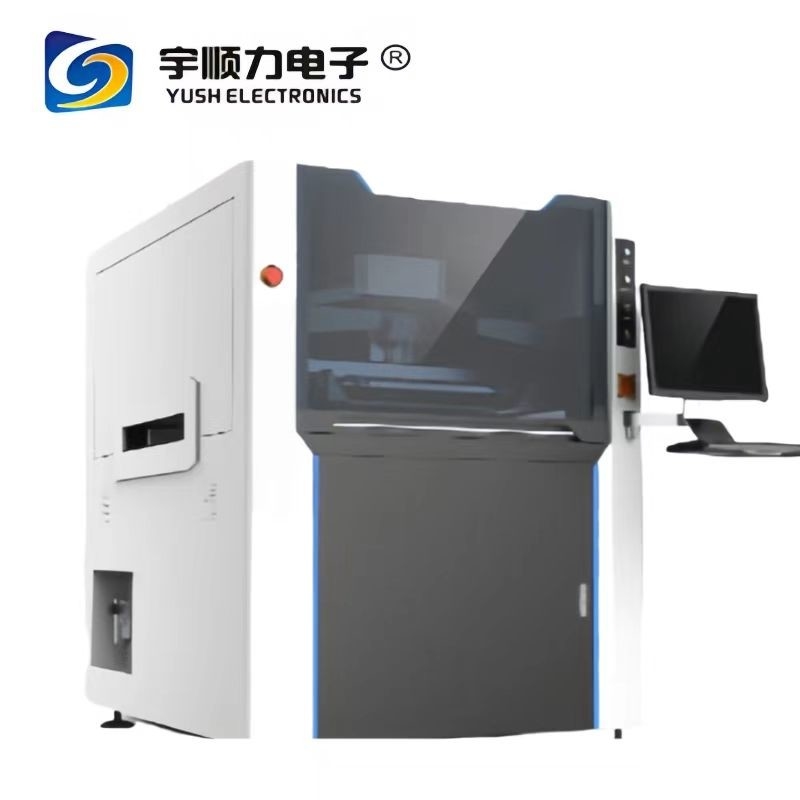

SMT Automatic PCB Solder Paste Printing Machine YSL-4034
Introduction of SMT Printer
1. High positional accuracy, repeated positioning accuracy ±0.01mm; printing accuracy 0.025mm.
2. Support glue printing,Automatic control improves production efficiency, quality control and saves production cost.
3. Automatic PCB calibration,Squeegee pressure adjustable,Automatic printing,Automatic stencil cleaning.
4. Programmable motor controls separation speed and distance among squeegee, stencil and substrate, to realize multi-method separation.
5. Multi-functional PCB positioning system for convenient and accurate PCB positioning.
6. Programmable PCB lifting platform ensure the PCB to lift to a proper height.
Specification of SMT Stencil Printer
| Model | YSL-4034 | YSL-5151 | YSL-6561 | YSL-1500(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 850*850 | 470*370 ~ 1800*750 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*510 | 80*50 ~ 650*610 | 80*50 ~ 1500*350 |
| TransportDirection | Left-Right; Right-Left; Left-Left; Right-Right | |||
| Support System | Magnetic Pin/Up-down table adjusted/support block | |||
| Clamping System | Side clamping, vacuum nozzle,Automation retractable Z pressure | |||
| Printer Head | Two independent motorised printhead | |||
| Squeegee Type | Stainless steel(standard),plastic | |||
| Cleaning System | Dry, Wet, Vacuum | |||
| Inspection | 2D Inspection(Standard) | |||
| Power Supply | AC:220±10%,50/60HZ,3Kw | |||
| Control Method | PC Control | |||
| Dimension(mm) | 1220*1355*1500 | 1220*1530*1500 | 1330*1530*1500 | 2500*1220*1500 |
| Weight | Approx:1250kg | Approx:1300kg | Approx:1300kg | Approx:1800kg |
| Model | YSL-5134 | YSL-6534 | YSL-1200(LED) |
| Frame Size(mm) | 470*370 ~ 737*737 | 470*370 ~ 737*737 | 470*370 ~ 850*850 |
| PCB Size(mm) | 50*50 ~ 400*340 | 50*50 ~ 510*510 | 80*50 ~ 650*610 |
| Dimension(mm) | 1220*1355*1500 | 1330*1530*1500 | 2200*1200*1500 |
| Weight | Approx:1250kg | Approx:1300kg | Approx:1500kg |
