Product Details
Place of Origin: Jiangsu
Brand Name: YUSH
Certification: CE, RUV Rheinland (China), GMC(GlobalMarket),ISO9001-2000

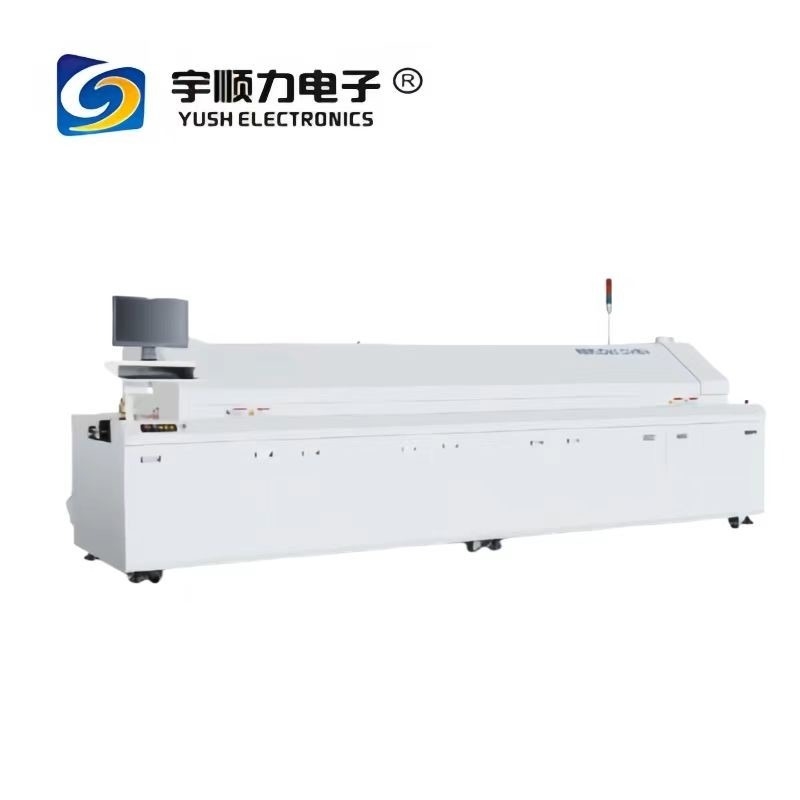

Model Number: YSL-Lyra 622
Payment & Shipping Terms
Minimum Order Quantity: 1set
Price: USD10000
Packaging Details: wooden case
Delivery Time: 5-7days
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 sets
Model: |
YSL-Lyra 622 |
Quantity Of Peak Zones: |
2 |
Max. Soldering Temperature: |
Pre-heating Zones 300 °C And Peak Zones350 °C |
Quantity Of Cooling Zones: |
2 |
Mesh Width: |
Standard 440mm( Option 560 & 680mm ) |
Rail Width: |
Single Rail: 50 - 460mm, Option: 50 - 686mm Other Width On Request. Duo Rail Standard: 50 - 290mm*2 |
Dimensions: |
5150*1400*1500mm |
Weight: |
2400 Kg |
Model: |
YSL-Lyra 622 |
Quantity Of Peak Zones: |
2 |
Max. Soldering Temperature: |
Pre-heating Zones 300 °C And Peak Zones350 °C |
Quantity Of Cooling Zones: |
2 |
Mesh Width: |
Standard 440mm( Option 560 & 680mm ) |
Rail Width: |
Single Rail: 50 - 460mm, Option: 50 - 686mm Other Width On Request. Duo Rail Standard: 50 - 290mm*2 |
Dimensions: |
5150*1400*1500mm |
Weight: |
2400 Kg |
For SMT Factory Setup, We Can Do for You:
1. We Provide Full SMT Solution for You
2. We Provide Core Technology With Our Equipments
3. We Provide The Most Professional Tech Service
4. We Have Wealthy Experience on SMT Factory Setup
5. We Can Solve Any Question About SMT
| Model | YSL-Lyra 622 | YSL-Lyra 622N | YSL-Lyra 732/ 733 | YSL-Lyra 732N/ 733N |
| Quantity of preheating zones | 6 | 6 | 7 | 7 |
| Quantity of peak zones | 2 | 2 | 3 | 3 |
| Max. soldering temperature | pre-heating zones 300 °C and peak zones350 °C | |||
| Quantity of cooling zones | 2 | 2 | 2 | 3 |
| Mesh Width | Standard 440mm( Option 560 & 680mm ) | |||
| Rail Width | Single Rail: 50 - 460mm, Option: 50 - 686mm other Width on request. Duo Rail Standard: 50 - 290mm*2 | |||
| Dimensions | 5150*1400*1500mm | 5150*1400*1500mm | 5850*1400*1500mm | 6250*1400*1500mm |
| Weight | 2400 kg | 2600 kg | 2800 kg | 3000 kg |
